Unlicensed Broadband Radio Products
The StarPlus 5300 is a high capacity base radio system that
offers a competitive alternative to leased lines, wired and optical
systems. StarPlus 5300 uses advanced OFDM and MIMO
technologies to deliver breakthrough performance in the
unlicensed band.
The StarPlus 5300 radio is ready to handle the extreme backhaul
loads that originate from today’s data-heavy 4G/LTE based
networks.
With the application of a multiple association license key, the
StarPlus 5300 can operate in multipoint mode and communicate
with StarPlus CPEs. The flexible StarPlus 5300 is the ideal
wireless platform to meet the needs of today’s bandwidth hungry
users.

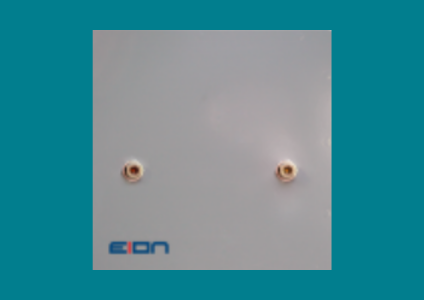

The StarPlus 5300 base radio is packaged in a rugged enclosure,
which is suitable for all weather conditions. The all-metal
enclosure provides high EMI immunity for stable operation in
interference prone environments.
• EION TrustLinkTM Technology
• 2 x 2 MIMO with software key
• Operates in 4.9 public safety and
5.8 GHz unlicensed bands
• 4G/LTE Backhaul Ready
• Rugged construction for all
weather conditions
• High spectral efficiency and robust
RF network performance
• Security Management
Enhancements
• Large portfolio of external panel
and dish antennas
• Real Time RSSI alignment
indicator
• Built-in spectrum analyzer &
audible antenna alignment beeper
• Up to 300 Mbps data rate over the
air, maximum Ethernet throughput
is 100 Mbps
• SNMP v2c and enterprise MIB for
advanced network management
• 40 MHz Turbo channel size
• 20 MHz Normal channel size
• 5 & 10 MHz Narrow band channel
sizes
• Built-in lightning, power surge PoE
protection, high EMI immunity
